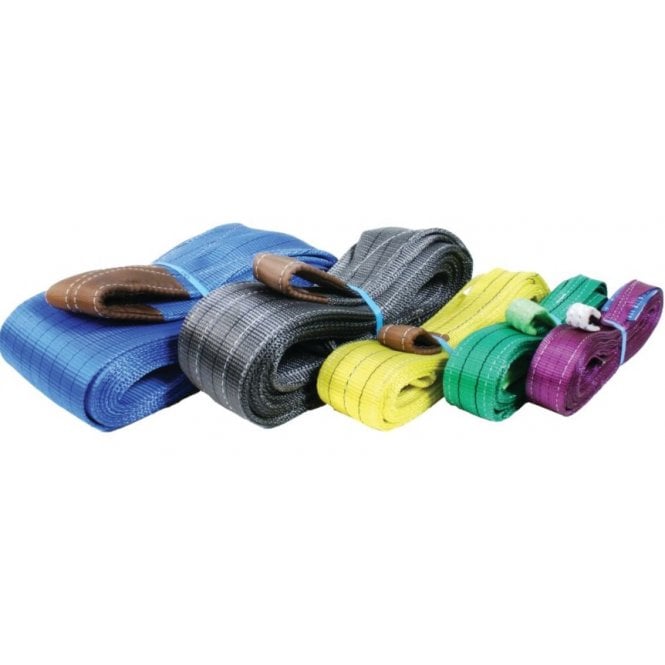

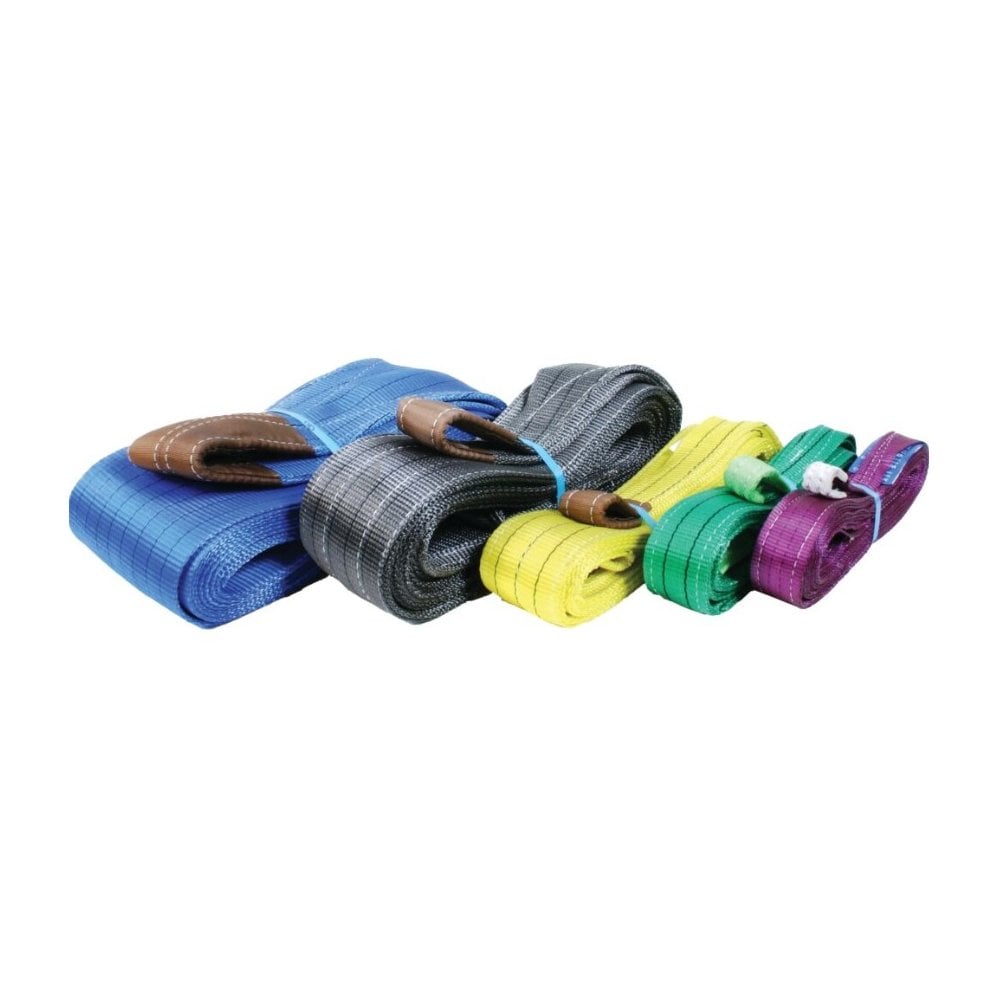

POWERTEX Webbing sling with eyes PWE are made from high strength polyester yarn having folded and reinforced eyes as standard.
The PWE slings are colour coded for quick and easy identification of the Working Load Limit!
Standard slings with full ton WLL are shown in the chart.
Safe – All POWERTEX PWE webbing slings are made from high strength industrial polyester and tested in accordance to EN 1492-1
Flat woven, double lay webbing made in solid weaving
Eyes are folded and equipped with additional wear protection
Each slings carry a blue label giving correct WLL for different load connection methods and angles
Each sling is marked with a unique serial number for safe sling registration
Year/Month calendar printed on the label where next inspection date can be marked or punched
Printing on the blue label is protected by an additional transparent plastic layer for long life
All slings carry a white label showing pictogram with important user warning instructions
QR code for on-site access to Multilanguage user manuals
Test certificate and Declaration of Conformity enclosed with each sling
Chemical resistance: Resistant to most acids, but not strong alkalizes Stretch at working load: 2-3% Length tolerance: Nominal length (EWL) ±3%.
Material: Polyester
Marking: According to standard, CE-marked, POWERTEX, WLL, EWL, manufacturing year, batch number, sling’s unique serial number, bar code, QR code, inspection calendar, user warning instructions
Temperature range: -40°C up to +100°C.
Standard: EN 1492-1
Note: According to EN 1492-1:2000+A1:2008: D.3.7: Slings should be protected from edges, friction and abrasion, whether from the load or the lifting appliance. Where reinforcements and protection against damage from edges and/or abrasion is supplied as part of the sling, this should be correctly positioned. It may be necessary to supplement this with additional protection.
