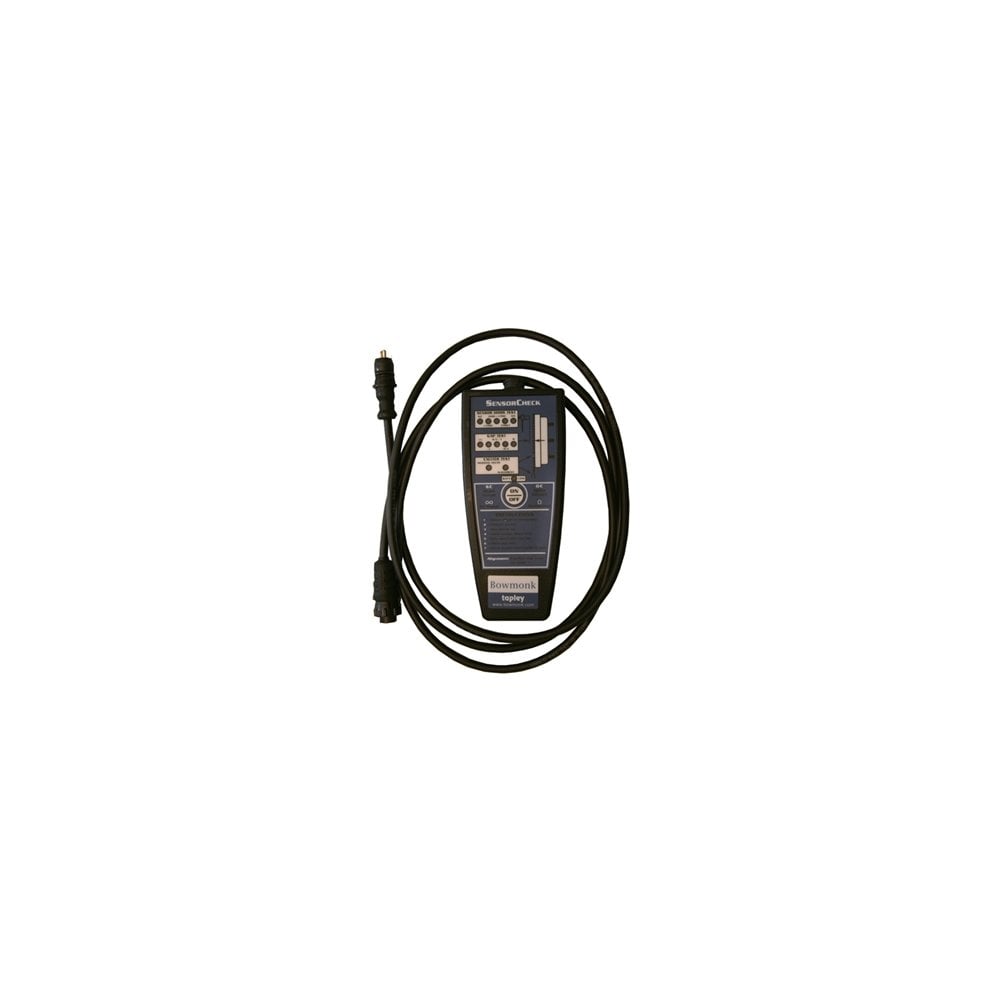

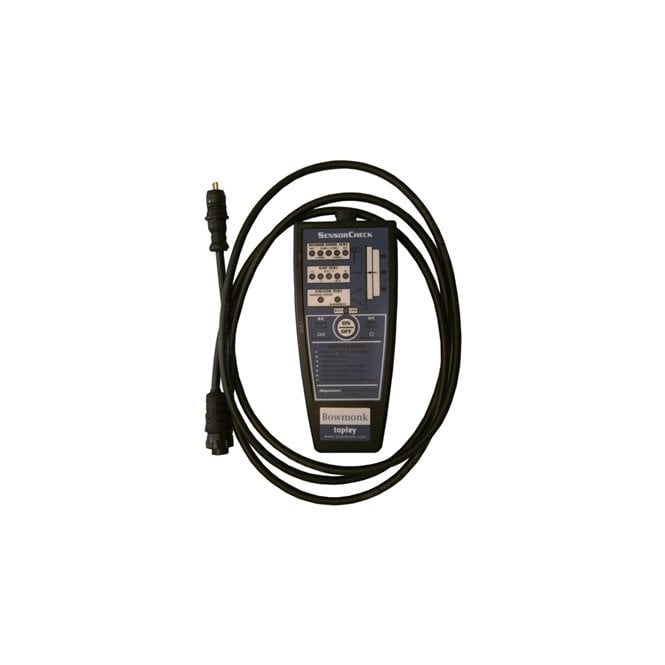

The SensorCheck is a handheld EBS / ABS sensor and exciter ring tester, for use on trucks, trailers, and buses. Designed with ease of use in mind, the SensorCheck takes minutes to set-up and once connected, undertakes a complete test cycle of the six most common causes of EBS / ABS faults at the touch of a button, in just 15 seconds.
Lightweight and portable, the SensorCheck comes supplied with two 1.6m high quality cables, short introductory printed manual and a single 9V battery.
Features & Benefits
Lightweight - Fits comfortably in the hand and is easy to operate.
Portable -Ideal for mobile diagnostic use. It runs off a standard 9V battery so requires no mains leads and is robust enough to use in adverse weather conditions.
Easy to use - All the instructions necessary to use the SensorCheck are printed on the face of the unit. A short introductory printed manual is also supplied. You can be up and running in literally a matter of minutes. Faults are indicated by easy to follow LED displays and the unit also indicates when the battery needs replacing.
Quick - Can complete a test cycle of the six most common causes of sensor related faults at the touch of a button, in just 15 seconds.
Accurate - Delivers precise, accurate results that are easy to interpret.
Robust - Designed and tested for professional use. It is manufactured from high quality components, has a wipe clean surface and comes supplied with two 1.6m high quality cables and 1 year parts and labour (return to base) Warranty.
Compatible - Compatible with 90% of applications as standard. It works with any EBS / ABS system manufactured by either Knorr-Bremse, Haldex or Wabco, fitted to any type of commercial vehicle, whether it be a truck, trailer, bus, or coach.
Comprehensive – Tests for the six main causes of sensor related faults on EBS / ABS systems:
Correct Ohms resistance
Open circuit
Short circuit
Pole ring tooth damage
Pole ring misalignment
Sensor gap measurement
Technical Specifications
Dimensions (W x H x L): 63mm x 35mm x 150mm
Weight (including battery): 0.125kgs
Power supply: 9V alkaline battery (included)
Cables: 2 x 1.6m (2 core) cables
Connectors:
Cable to vehicle sensor socket: Cannon (male)
SensorCheck unit to cable plug: 2 pole connector
Instructions for use: Printed on face of unit, plus printed manual
