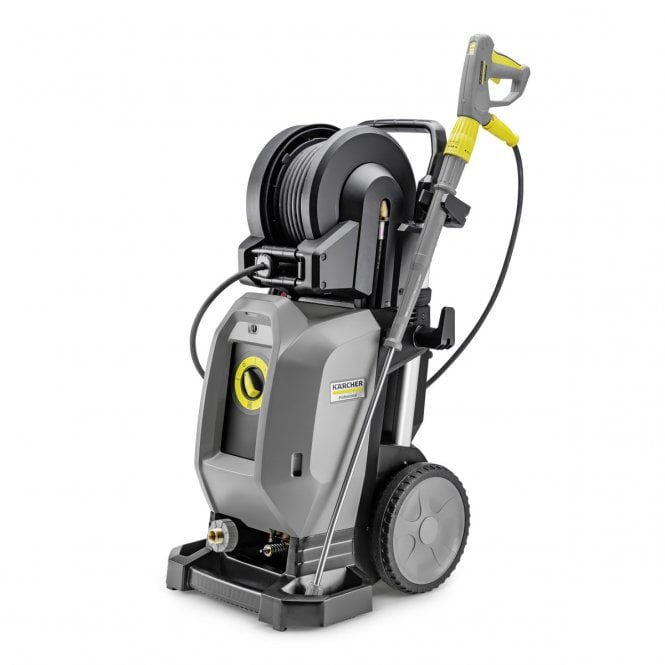

The HD 9/20-4 SXA Plus cold water high-pressure cleaner delivers impressive ergonomics and premium quality. Effortless operation thanks to the EASY!Force Advanced high pressure gun with no holding force. Pressure and water volume adjusted via the Servo Control controller. The Vibrasoft rotary nozzle reduces vibrations and noise by up to 30 per cent. Assistance systems and an LED status display provide clear information. Excellent workmanship and the very best materials make this Super Class machine stand out from the crowd.
The vertically mounted motor and pump unit, comprising a hard-wearing wobble pump with stainless steel pistons and a brass cylinder head, keeps the construction compact for maximum portability. Complete with a powerful 4-pole low-speed motor with air-water cooling system. Aluminium frame carriers form a lightweight yet robust chassis, suitable for crane loading. Includes ultra-guard high-pressure hose with robust Teflon® coating and an automatic hose reel capable of winding and unwinding even under pressure and at an angle of up to 45 °, for up to 50 per cent quicker set-up times.
Technical data
Current type (Ph/V/Hz)3 / 376 - 424 / 50
Flow Rate (l/h)500 - 900
Water feed temperature (°C)60
Operating pressure (bar)50 - 200
Max. Pressure (bar)250
Power rating (kW)7
Power cable (m)5
Nozzle size047
Weight (with accessories) (kg)74.5
Weight incl. packaging (kg)83.6
Dimensions (L × W × H) (mm)607 x 518 x 1063
Included
4-pole three-phase motor with air and water cooling
Three piston axial pump: with stainless steel pistons
Please see attached downloads for downloadable information.
Please see attached guides for recommended additional products. For any enquiries regarding purchasing these, please contact our shop team on 03717 11 11 11.
