VPG VanWeigh2

Code: S6857-VM
  • Member price: £1,168.20
  • Non Member price: £1,188.80
Item in Stock   |   Usually dispatched within 24 hours
Loading...

Groundbreaking LCV Overload Protection

VanWeigh has revolutionised the market for LCV overload protection and load optimisation systems. Featuring VPG Onboard Weighing's patented inclinometer technology, it provides a flexible fit-and-forget solution suitable for any twin axle light commercial vehicle up to 7.5 tonnes.

Simple to fit, easy to use and requiring no re-calibration, VanWeigh makes overload protection and load optimisation available to a wider market. It works with any type of suspension, delivering accurate weight monitoring at a competitive price. This makes VanWeigh ideal for avoiding overload penalties in any jurisdiction.

Please note that there is an installation and calibration charge of £300.00 for this product.

Detection technology with no moving parts

VanWeigh is the only on-board weighing system for light commercial vehicles that does not rely on spring deflection to measure weight. Instead, it uses inclinometers as well as air pressure sensors if necessary.

This revolutionary approach makes it easier to install VanWeigh, while reducing the need for ongoing maintenance. Once installed, the system continuously delivers a weight of more than ±2.5% with 90-100% PBV without the need for subsequent recalibration. To date, more than 35,000 customers have enjoyed these benefits and more.

Avoid fines and stay compliant

VanWeigh has a dual purpose: to protect your company and drivers from possible fines, licensing issues or worse even more load limit violations, while helping to optimize every payload. Ensuring that every vehicle operates within the defined safety limits will become even more important for European logistics when strict new EU regulations come into force in May 2021.

VanWeigh monitors both the gross weight of the vehicle and the weight of each axle, providing clear alerts on a colour touchscreen and audible alarms to prevent load limit exceedance. The output options of the telematics system can transmit all data to fleet managers.

Ease of installation

Lightweight yet robust, the VanWeigh system requires minimal maintenance. The absence of moving parts means that the internal components experience very little wear and tear and their calibration is preserved. The system can be easily installed by trained technicians within four hours. We have agents in 30 countries.

Ease of use

VanWeigh requires no driver intervention and has a large color touchscreen for easy operation. It supports multiple languages and communicates important information to the driver via clear visual messages and audible alarms.

Total load and axle monitoring

By placing a patented VPG Onboard Weighing sensor on each axle, VanWeigh simultaneously monitors individual axle loads and total vehicle loads. It is configured with three predefined alert conditions:

  • Safe: Indicates loads up to 90% of the limits for the front or rear axle and the total load.
  • Warning: Indicates loads between 90 and 100% of limits.
  • Overload: Warns the driver that the load has exceeded the limits of the axle or the entire vehicle.

Telematics Output

For simple plug-and-play telematics integration, the VanWeigh indicator has a dedicated output for connection to an external tracking system. An optional cable provided by VPG Onboard Weighing allows your telematics platform to capture load data and log alerts.

Features & Benefits

  • Weighing accuracy or ±2.5% (90-100% PBV) or higher
  • Axle overload and gross overload warnings
  • Robust and lightweight
  • Colour touchscreen
  • Simple to use
  • No driver intervention required
  • Helps balance load distribution and optimize payload capacity
  • Reduces Vehicle Wear and Tear
  • Improves the vehicle's operating tolerance (braking)
  • Potential for reduced fuel consumption
  • Avoid fines and overload endorsements
  • Protect your license
  • Electrical tests in accordance with E and CE marking requirements
  • Environmental performance superior to SAE J1455

What's in the box

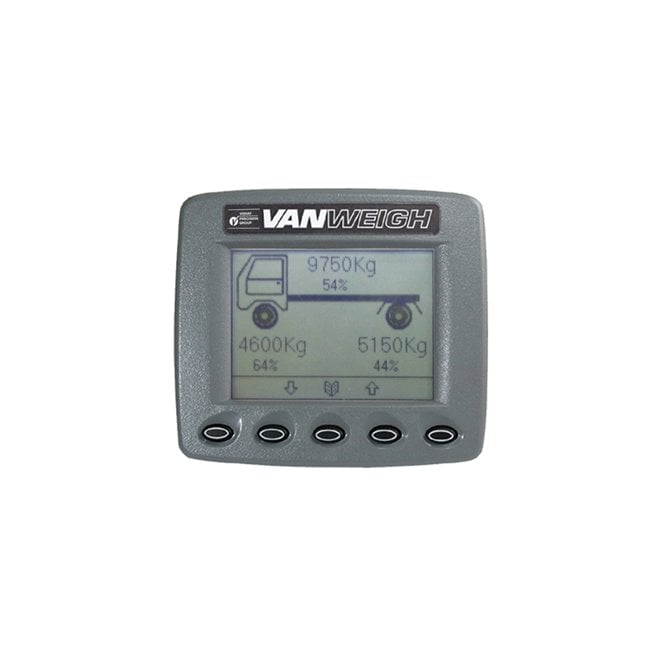

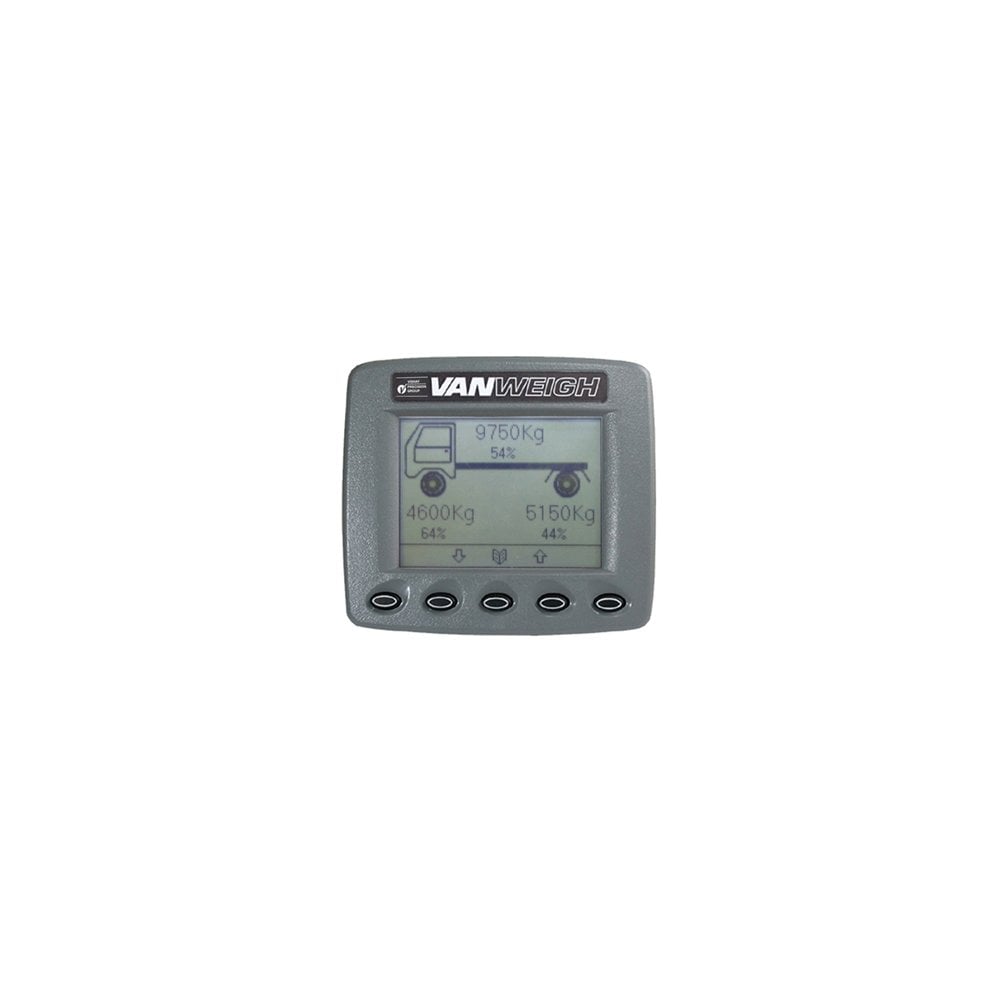

  • VanWeigh® Display Unit - A single VanWeigh® display unit is supplied for the vehicle.
  • Display Mount - A single display mount is supplied for the display unit.
  • Axle Transducer - A single cable with a connector at one end and the axle transducer at the other. This is supplied for steel axle suspension systems. A single transducer is supplied for each transducer position. Bonding tape is supplied for each transducer.
  • Air Pressure Transducer - The parts for the air pressure transducer are supplied in a bag. A single air transducer is made up from a T-connector, a brass sensor fitting and two plastic air pipe fittings This is supplied for air suspension systems A single transducer is supplied for each transducer position.
  • Internal Domain Cable with Air Transducer Fitting - A single transducer cable is supplied for each air transducer position.
  • Junction Box - A single junction box is supplied for the rigid vehicle.
  • Internal Domain Junction Box Cable 3 way - The cable is identified by the green junction box connector and 3 male internal domain cable connectors.
  • External/Internal Domain Junction Box Cable 2 way - A single external domain output cable is supplied for each junction box. The cable is identified by the brown junction box connector at one end and at the other end, one external domain cable connector and one male internal domain cable connector.
  • External Domain/Power cable - A single external domain cable is supplied for the system The cable is identified by the external domain cable connector at one end and the display connector at the other.
  • Cable Protector and Cable Ties.
  • Surface Cleaning Wipes.
  • Double Sided Bonding Tape.
