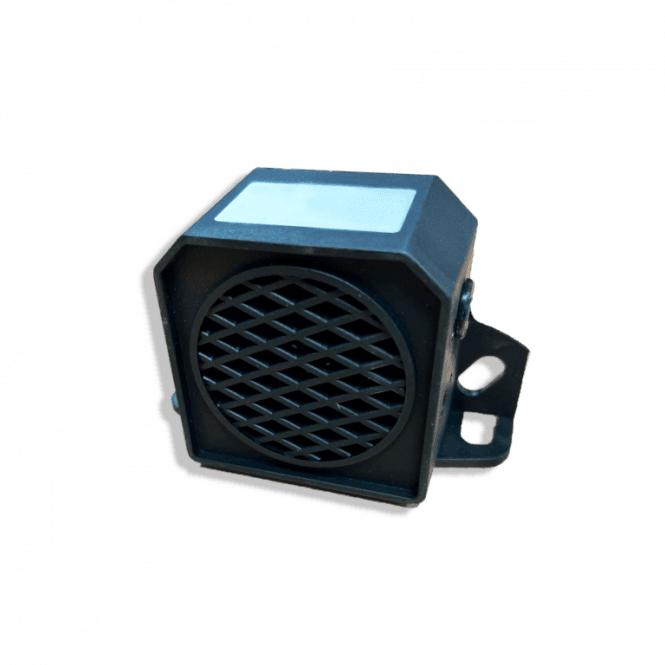

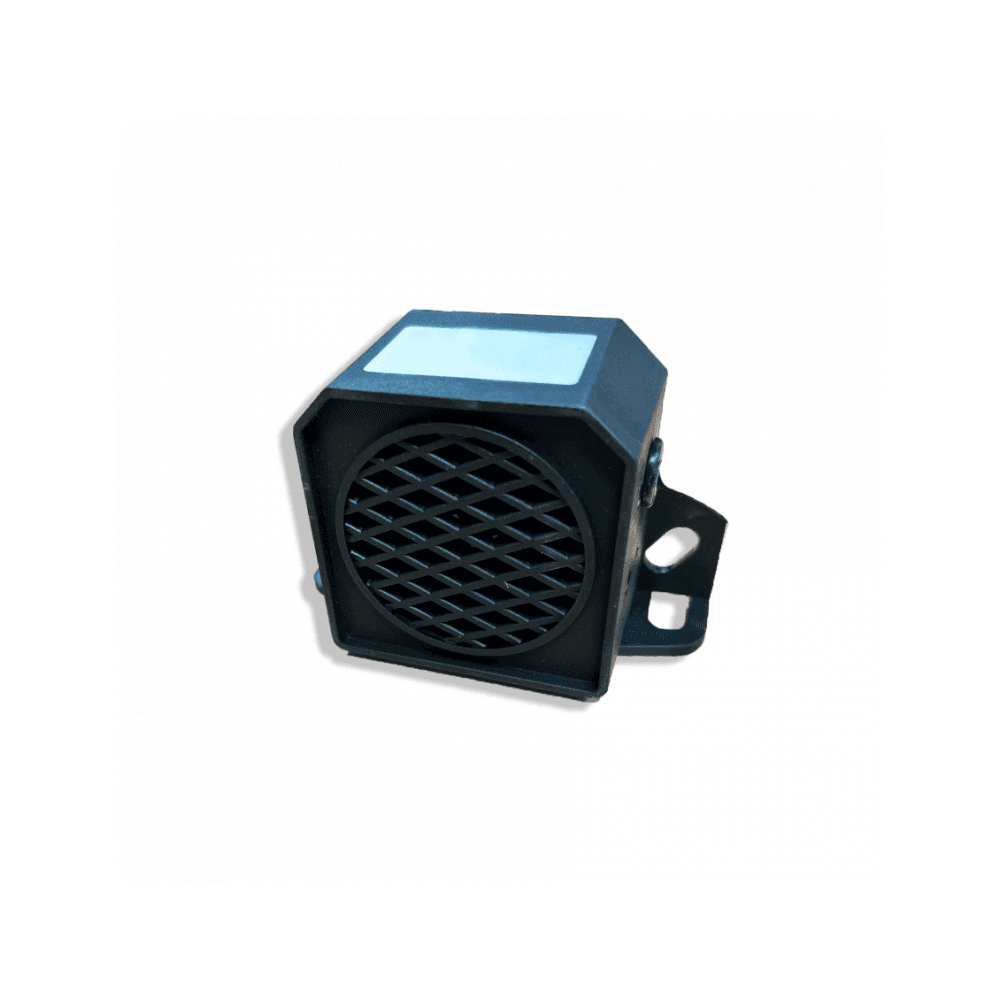

The left turn alarm is fitted to LCV and HGV vehicles to alert pedestrians and cyclists when the vehicle is turning left.
When used in conjunction with our Signal Indictor Switch the alarm also connects to the right indicator so the alarm doesn’t sound when the hazard lights are on. The unit is CE & EMC marked.
Specifications:
Voltage: 12 ~24V DC
Sound: “Beep, Beep, Beep, Warning this vehicle is turning left’
Sound pressure: 97dB±4dB(A) @ 4ft
Rated current <0.6A
Two bolt mounting
Wiring: Red: Power 12 / 24VDimensions: 105mm (W) x 65mm (H) x 45mm (D)
Black – Ground; Blue: Left Trigger input; White – Mute input (Right Indicator or Headlights)
