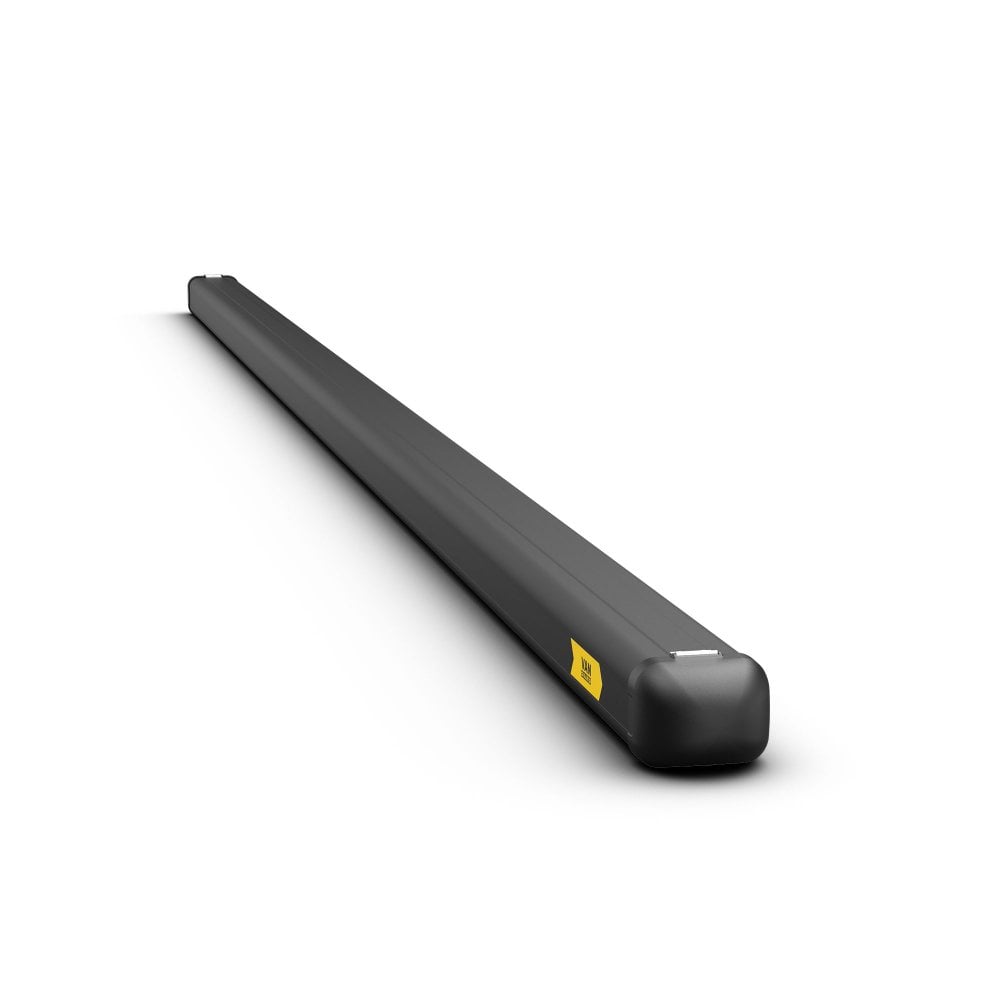

Van Guard 3m Black Standard Pipe Carrier - Unlined

The 3m pipe carrier with twin opening VG400-3-BLACK (Carries up to 36 x 15 mm pipes) is a universal product in terms of design & fitting. Twin opening standard size pipe carrier extremely light anodised aluminium extrusion combining strength and style. Designed to carry 100m of tube - 36 x 15mm copper tubes up to 3m in length weighing 30kg.

Product Features

• Durable - excellent anti-corrosive properties.
• Fuel efficient.
• Aerodynamic end cones reduce wind noise.
• Minimal wind drag and maximum style.
• Plastic end caps with internal steel bulkhead for strength.
• Integrated locks at both ends supplied with two sets of keys (No padlocks to lose).
• Crash tested to capacity to 20G.
• Made from anodised aluminium to AA15.
• Supplied with 2 keys.
• Weight: 6.7kg (without contents).
• External dimensions:124mm (W) x 90mm (H) x 3190mm (L).
• Internal dimensions: 112mm (W) x 75mm (H) x 3020mm (L).
• Able to carry up to 36 x 15mm copper pipes weighing 30kg.
• Load weight limit: 30kg.
• To fit pipes up to 3m in length.
• Fitting time approximately 20-30 minutes.
• Detailed fixing instructions are supplied.
• Contains a universal T-Track fixing.
• Supplied with universal brackets to fit most bars that are 20-50mm high and 20-60mm wide.
• Bars should not need drilling as a unique clamping system is provided.
• Can be fitted to other makes of bars.
