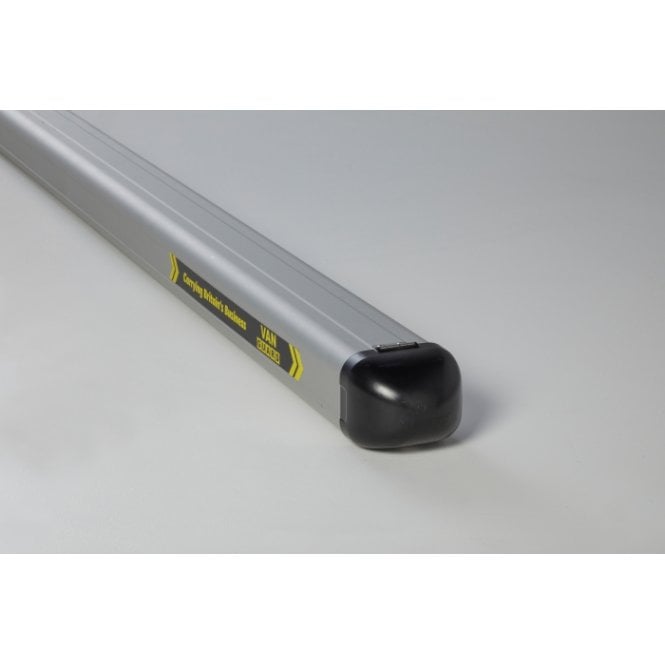

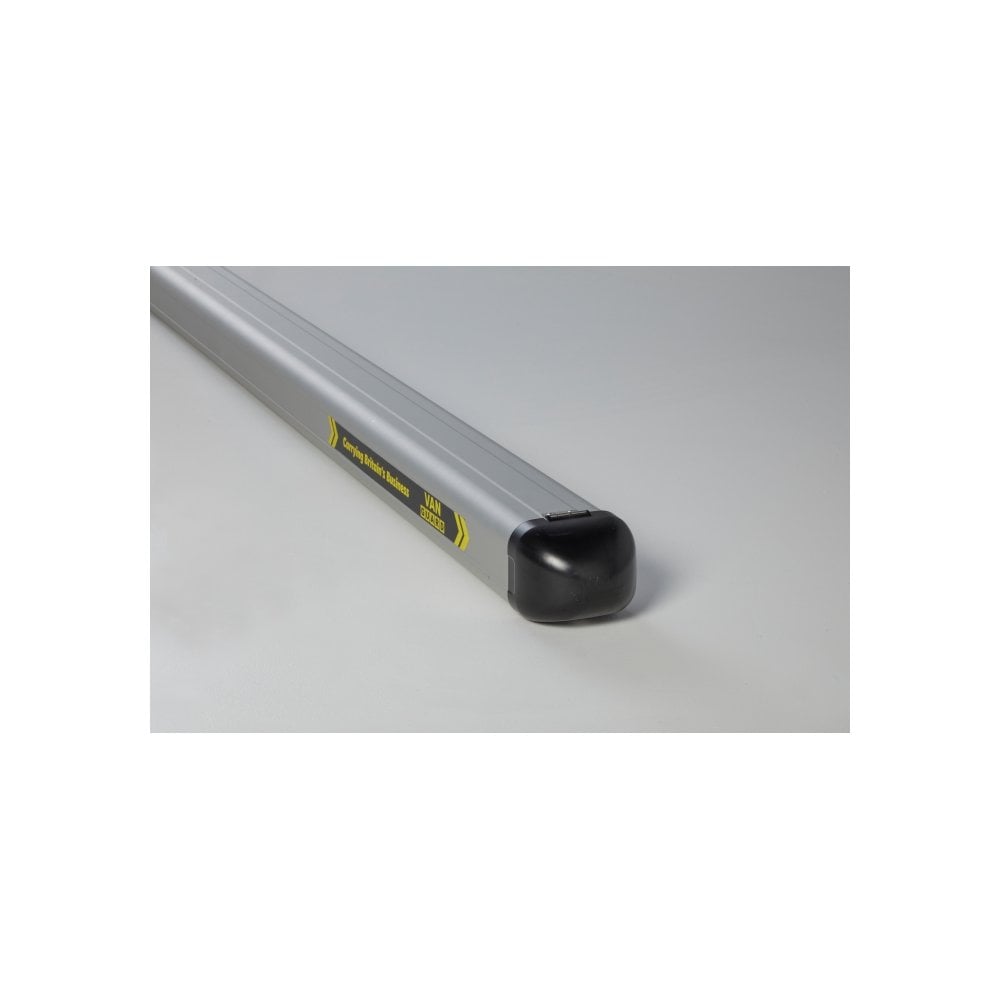

The 3m lined pipe carrier with twin opening VG400-3L PVC lined (Carries up to 32 x 15 mm pipes) is a universal product in terms of design & fitting. Twin opening standard size pipe carrier with liner, extremely light silver anodised aluminium extrusion combining strength and style. Designed to carry 100m of tube - 32 x 15mm copper tubes up to 3m in length weighing 30kg.
Twin opening and locking so great functionality.
Durable - excellent anti-corrosive properties.
Very popular unique PVC liner included - to protect your trunking/conduit.
Fuel efficient.
Aerodynamic end cones reduce wind noise.
Minimal wind drag and maximum style.
Plastic end caps with internal steel bulkhead for strength.
Integrated locks at both ends supplied with two sets of keys (No padlocks to lose).
Crash tested to capacity to 20G.
Made from anodised aluminium to AA15.
Supplied with 2 keys.
Weight: 9kg (without contents).
External dimensions:124mm (W) x 90mm (H) x 3190mm (L).
Internal dimensions: 108mm (W) x 69mm (H) x 3020mm (L).
Bespoke lengths available up to 6 metres - Please see VG400-BLPL.
Able to carry up to 32 x 15mm copper pipes weighing 30kg.
Load weight limit: 30kg.
To fit pipes up to 3m in length.
Fitting time approximately 20-30 minutes.
Detailed fixing instructions are supplied.
Contains a universal T-Track fixing.
Supplied with universal brackets to fit most bars that are 20-50mm high and 20-60mm wide.
Bars should not need drilling as a unique clamping system is provided.
