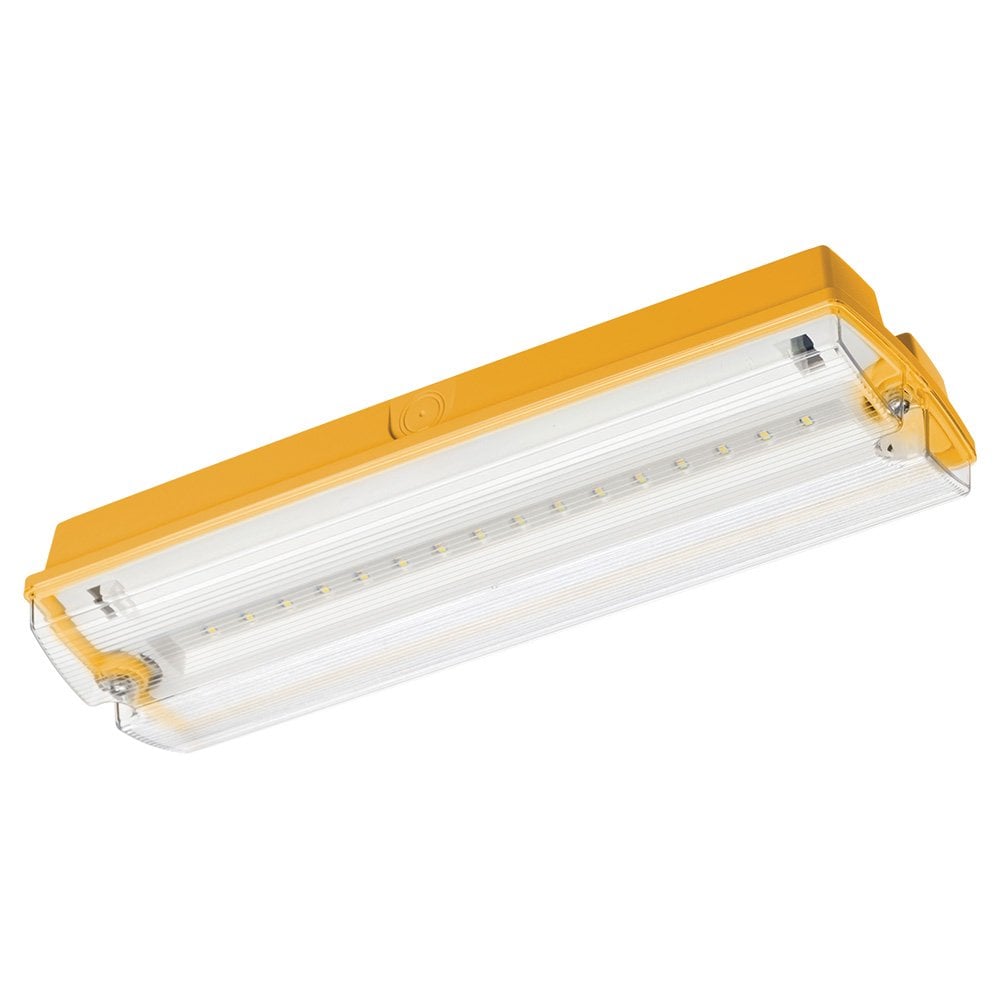

Red Arrow Vanguard Site Emergency Bulkhead 110V IP66 350mm

Vanguard Site delivers safe site illumination in the event of a power failure. Featuring a sleek, shallow profile and carefully designed lens for improved spacings, Vanguard Site also has configurable maintained or non-maintained operation and features a hinged gear tray for easy and rapid installation.

Features

• Selectable Self Test / Manual test operation
• Hinged gear tray for quick and easy installation
• Selectable maintained or non-maintained operation
• 3 hours emergency duration
• Supplied with self adhesive exit legend kit

Lumen Output

150 lm

Emergency Lumen Output

150 lm

Wattage

3W

Warranty

5 Years

Emergency Battery Warranty

5 Years

Colour Appearance (CCT)

6500K

IP Rating

IP66

IK Rating

IK08

Emergency Battery Type

LiFePO4

Voltage

110V

Colour Finish

Yellow RAL1007

LED Life Expectancy

L70B50 54,000 Hours

Power Factor

0.3

Frequency

50/60Hz

Driver Type

Fixed Output

Approval

UKCA CE

Electrical Class

Class II

Material (Body/Housing)

ABS

Material (Diffuser/Cover)

Polycarbonate

Colour Rendition (CRI)

Ra >80

Working Temperature

0°C to 45°C

EM Working Temperature

0˚C to 45˚C

Dimensions (mm)

L:351 x W: 111 x D: 63 mm

• Vanguard Site Emergency Bulkhead 110V IP66 350mm
