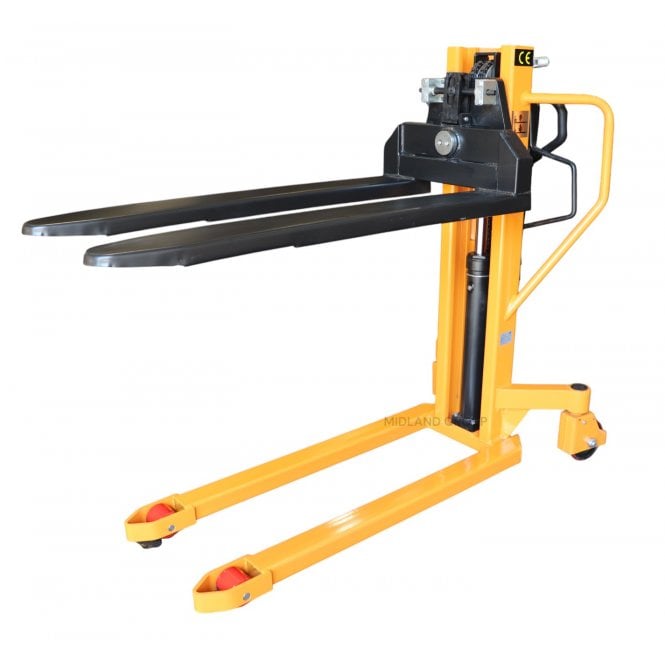

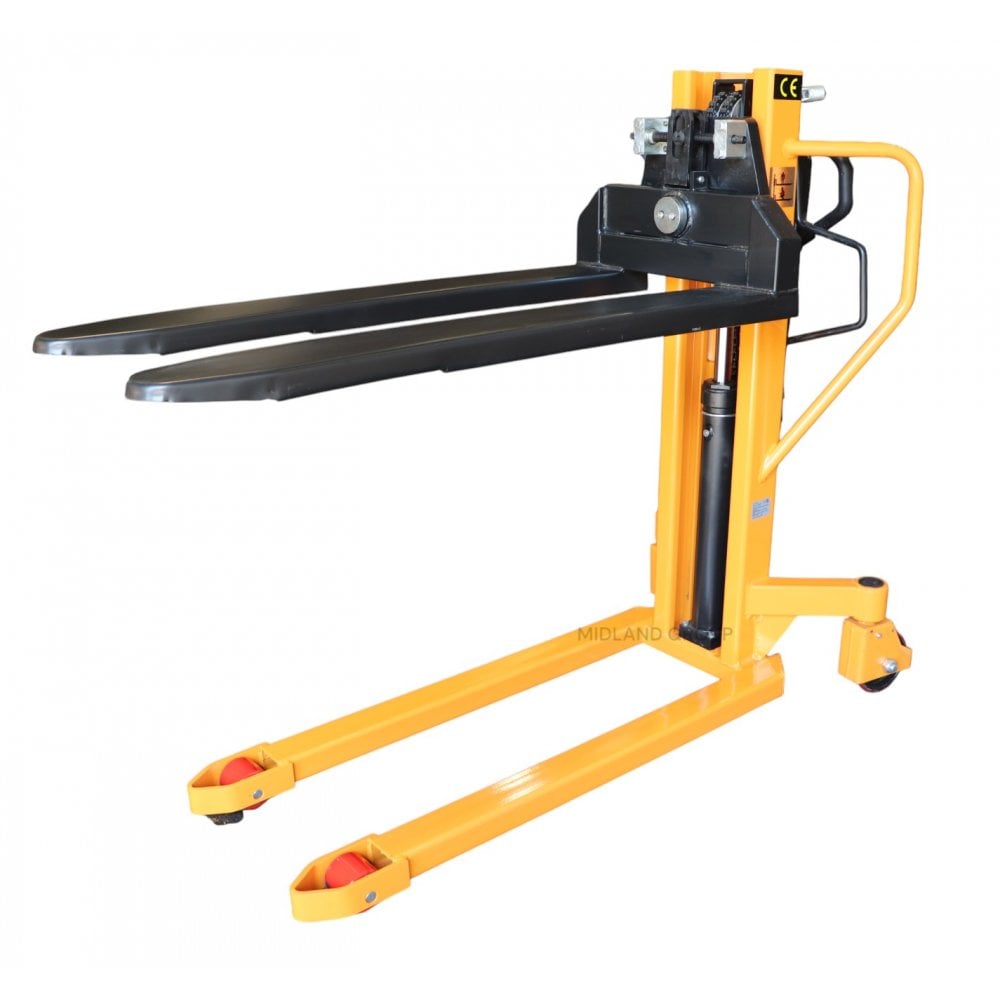

High Lift Swivel Pallet Truck is designed for the forks to turn left or right up to 20 degrees.
It has a load capacity of 800kg, Fork dimensions of 540x1150mm and a maximum lift height of 920mm.
Designed to give the user an ergonomically correct position, to reach loads easily and without the necessity to bend down or stretch up.
The lateral movement is an additional feature and the forks can be left in a parallel position.
Please note - this model will only lift open bottom pallets.
Orders delivered to Northern Ireland or Scotland will be subject to an additional delivery fee. Contact us for a quotation or for more details.
Capacity (kg) 800
Max. Fork Height (mm) 920
Min. Fork Height (mm) 88
Width Overall Forks (mm) 540
Fork Length (mm) 1150
Fork Width (mm) 150
Fork Lateral Tilting Angle ( ° ) Each 20 of left and right
Load Wheel Diameter (mm) Ø80×70
Steering Wheel Diameter (mm) Ø160×50
Total Length (mm) 1630
Total Width (mm) 694
Total Height (mm) 1320
Net Weight (kg) 210
