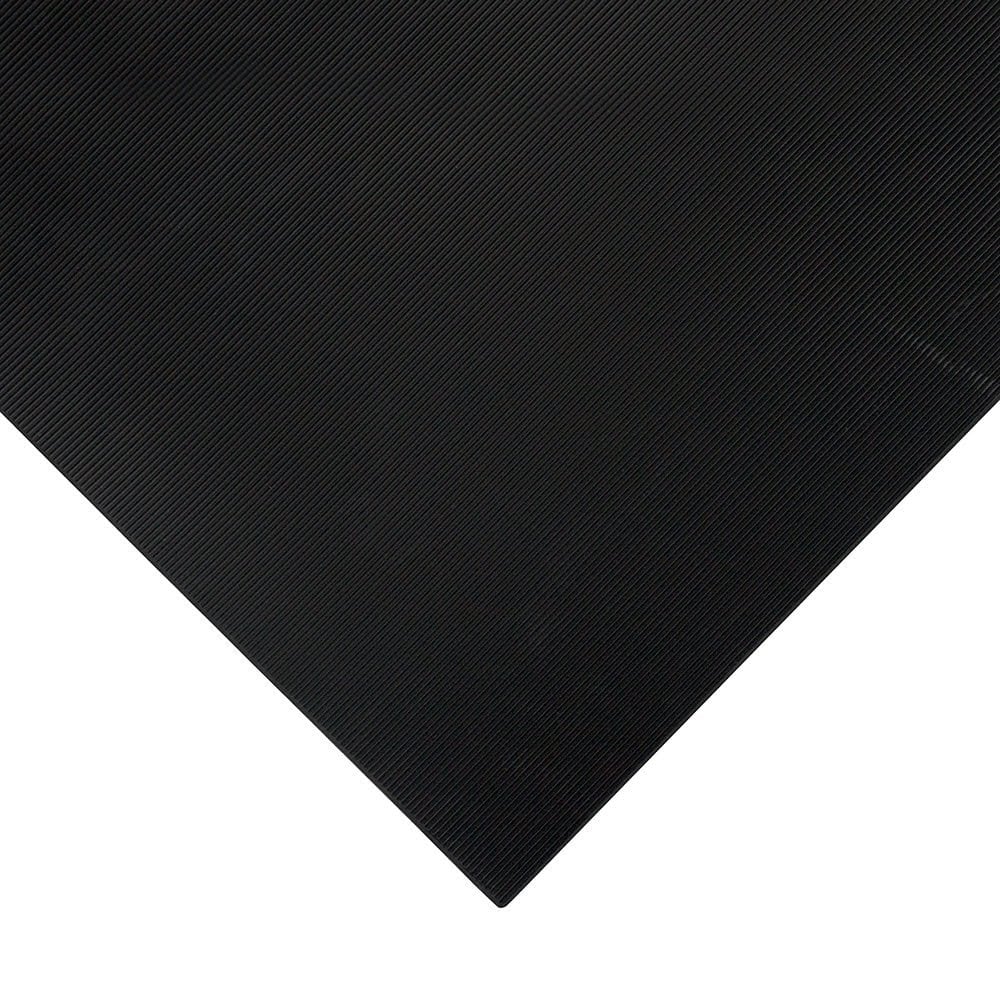

COBA switch BS EN:61111 Electrical Safety Matting

Code: S2176

Item in Stock | Usually dispatched within 24 hours

Loading...

Electrical insulating matting that conforms to BS EN 61111:2009

Specialist electrical insulating matting to protect operatives from electrical shocks.
Conforms to the most recent internationally recognised safety standard IEC 61111:2009 /BS EN 61111:2009.
Designed specifically for use in front of switchboards and for other areas with high voltage equipment.
Three thicknesses available to meet the different classes of working voltage, Class 0, Class 2 and Class 4.
Colour coded on the reverse clearly identifying the working voltage classification.
Ribbed surface helps to provide a firmer footing, reducing the risk of slips while improving standing comfort.

Technical Specification
Material	EPDM rubber
Recycled Material Content %	20% recycled content
Surface Finish	Fine fluted ribs
Product Height	3 mm, 4 mm, 5 mm
Roll Length	10 m
Min. Operating Temperature	-30°C
Max. Operating Temperature	+80°C
Resistance to Chemicals	Resistant to acid and oil at low temperatures
Environmental Resistance	Suitable for dry indoor environments
UV Resistance	Yes
Typical Applications	High voltage areas, Open switchboards
Installation Method	Loose lay
Cleaning Method	Hose down or pressure wash using a mild detergent

BS EN 61111:2009 Class	Thickness	Working Voltage	Withstand Tested To
Class 0	3mm	1KV	10KV
Class 2	4mm	17KV	30KV
Class 4	5mm	36KV	50KV
